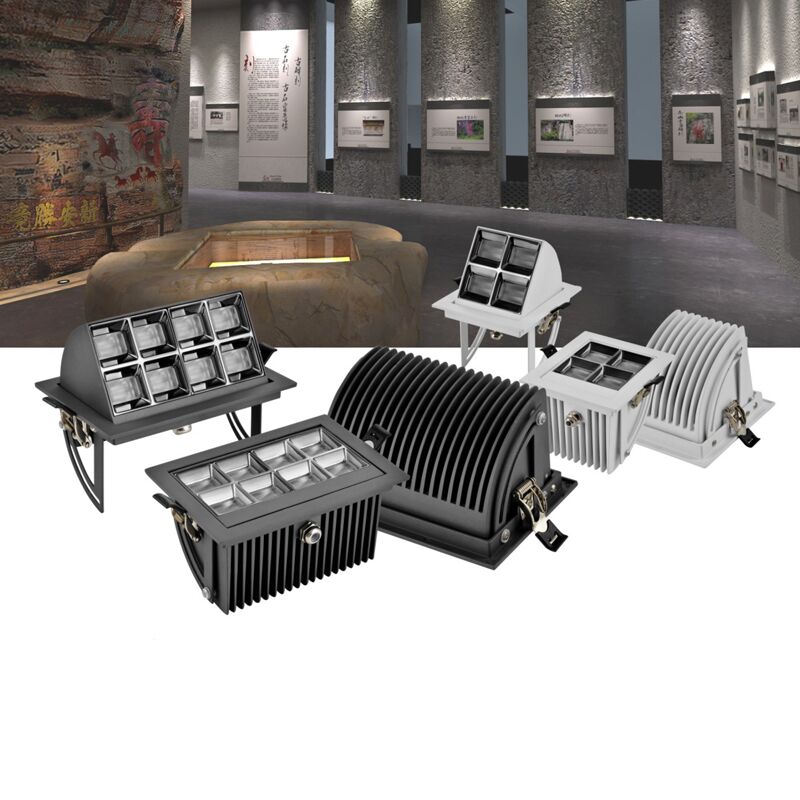

LED 1/2 Head Square Grill Downlight HY-XBXT/12-48W

XBD-01

XBD-01

Categories LED Grill Downlight, Linear Downlight Tags adjastable, Anti-glare, Die-Casting Aluminium, pull-out, SMD

1/2Heads Led Grille Down Lights/12-48W

The 90-degree retractable downlight with a wide range of applications to meet the lighting designer.

It is the most popular shape of the market square grille lamp

Additional information

Wattage	12W,24W,48W
Input Voltage	85-265V
LED Type	SMD
CCT	3000K, 4500K, 6500K

Product Details:

Product Features:

The body is made of die-casting aluminum. Good heat dissipation function.
It Is the best energy-saving LED substitute for traditional lighting Metal halide
The perfect beam angle design highlights the key lighting parts.
Provide multiple light color temperature options to meet your use environment requirements (conventional light color 3000K/4000K/6500K)
90° tilt allowing for directional adjustment in a variety of lighting applications ;
Manufactured with a single 12/24/48W LED with a high CRI of 90+;
RAL painting accept customized, Using a high-end spraying process, perfect handling of every detail
Anti-glare<19
3Year Warranty

Application :

High Ceilings
Shopping Malls
Supermarkets
Hospitals
Hotel
Exhibition Halls
Warehouses
Office & School

Product Parameters:

LED COB Commercial light HY-XBXT

Moel	Power Watt	Led	Voltage	CRI	Beam Angel	Adjustable Angel	Luminous/Watt	Body Size	Cut Size	CCT	Fram Color
HY-XBXT-04	3W*4	SMD 3030	85-265V	≥90	15°/ 24°/38°/50°OR 35*70°	90° tilt	≥90lm	10088H80mm	85*78mm	2700K/4500K/6500K	Whtie/Grey
HY-XBXT-08	3W*8	SMD 3030	85-265V	≥90	15°/ 24°/38°/50°OR 35*70°	90° tilt	≥90lm	145100H80mm	140*85mm	2700K/4500K/6500K	Whtie/Grey
HY-XBXT-14	6W*4	SMD 3030	85-265V	≥90	15°/ 24°/38°/50°OR 35*70°	90° tilt	≥90lm	125110H100mm	106*95mm	2700K/4500K/6500K	Whtie/Grey
HY-XBXT-18	6W*8	SMD 3030	85-265V	≥90	15°/ 24°/38°/50°OR 35*70°	90° tilt	≥90lm	185125H100mm	170*110mm	2700K/4500K/6500K	Whtie/Grey
